Guide to Custom Candle Mould Development

A distinctive candle shape can be commercially valuable, but it only becomes a viable product when it can be released cleanly, produced consistently and packed without excessive reject rates. This guide to custom candle mould development explains the decisions that turn an initial concept into a dependable production tool, from the first drawing to validated output.

For candle brands, product developers and contract manufacturers, the objective is not simply to create a mould that produces one attractive sample. It is to engineer a mould system that protects fine detail, withstands repeated casting cycles and supports the required production volume.

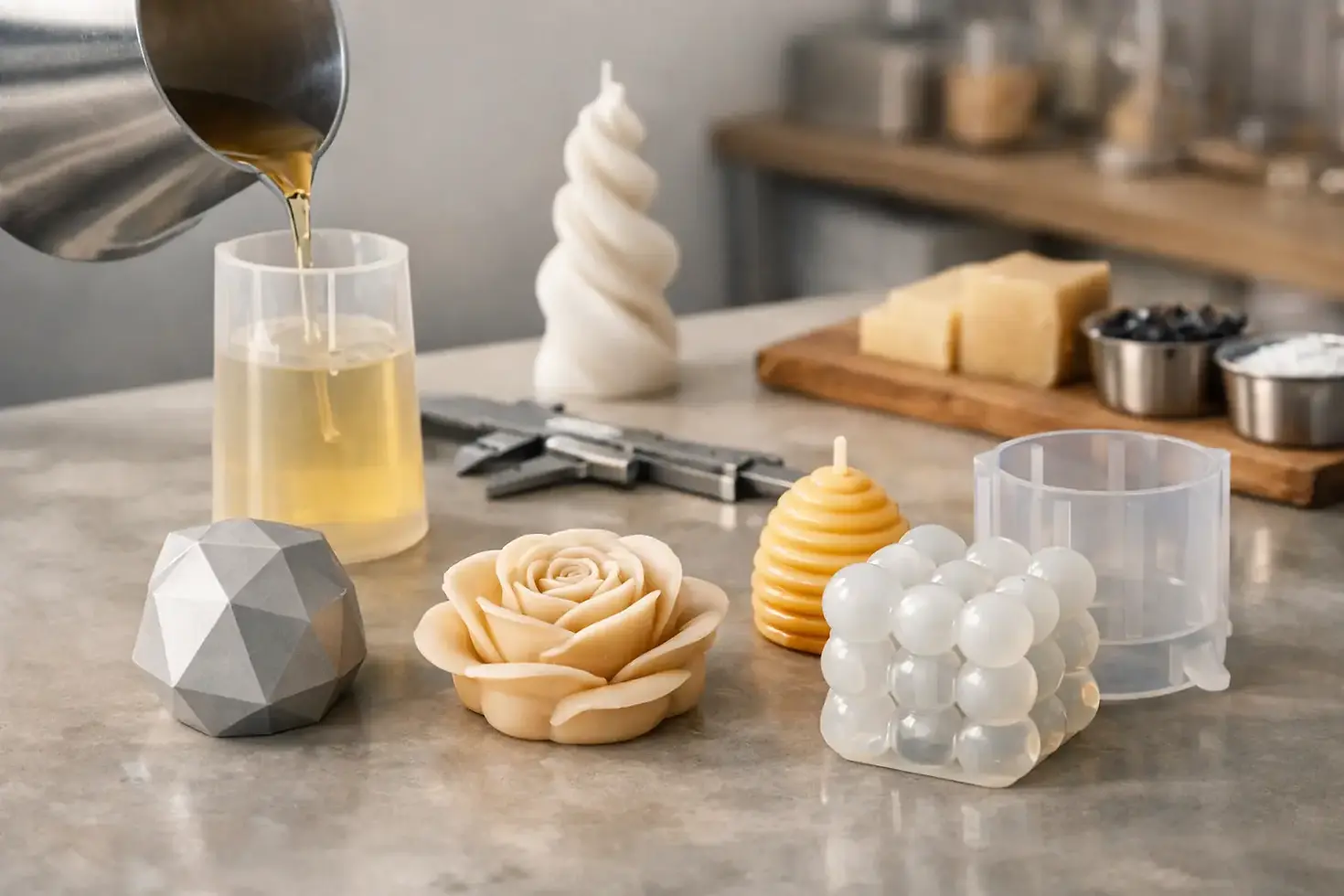

Start with the candle, not the mould

The mould specification should begin with the finished candle's purpose. A sculptural centrepiece, a container insert, a pillar candle and a set of small wax melts place very different demands on the tooling. Dimensions, wall thickness, surface texture, expected burn behaviour, packaging constraints and target batch size all influence the final design.

Wax formulation matters just as much as candle geometry. Paraffin, soy, rapeseed blends, beeswax and mineral waxes have different shrinkage characteristics, pour temperatures and release behaviour. Fragrance load, dyes and additives can also affect the casting process. A design that performs well with one wax blend may need adjustment for another, particularly where fine protrusions, narrow necks or deep textures are involved.

At this stage, define the details that cannot be compromised. These might include a logo, a recognisable silhouette, precise fluting or a decorative relief pattern. It is equally useful to identify features that can be modified if they improve release and reduce damage. Small changes to radii, draft angles or depth can make a meaningful difference to mould life and daily production efficiency.

Custom candle mould development begins with release

Release is the central engineering question in custom candle mould development. The candle must leave the mould without tearing delicate wax details, distorting the form or damaging the mould itself. Silicone is widely used because of its flexibility, temperature resistance and natural release properties, but material selection alone does not solve every geometry challenge.

Undercuts are a common example. A modest undercut may be manageable in a flexible silicone mould, while a pronounced return, narrow opening or deeply hooked feature may require a split mould, multiple sections or a redesigned master. Trying to force an unsuitable shape through a single-piece mould can lead to slow demoulding, inconsistent results and premature tearing.

The mould split line also needs careful consideration. It should be positioned where it is least visible on the finished candle and where it provides practical access during demoulding. On highly decorative products, this can require a balance between appearance and manufacturability. The least visible split is not always the most effective one if it creates an unstable mould or makes the wax difficult to remove.

Plan for the wick and fill point

A candle mould must accommodate a wick in the correct position. Depending on the product, this may involve a wick hole, an integrated support arrangement or a process in which the wick is inserted after casting. The method should suit the candle's size, its intended burn performance and the team's production workflow.

The fill point needs similar attention. A sufficiently sized pour opening makes casting quicker and helps prevent trapped air, yet it should not leave an excessive witness mark that requires trimming. For complex forms, the direction of pour and the location of vents may be decisive. Fine tips, raised lettering and deep recesses can trap air, leaving incomplete detail unless the mould design encourages it to escape.

Choose silicone around the working conditions

Silicone moulds are not all specified in the same way. Hardness, tear strength, elongation, surface finish and temperature performance should be selected around the part geometry and expected use. A softer silicone can make complex forms easier to demould, but if it is too flexible for a large or tall candle it may lose dimensional stability during filling or handling.

A firmer silicone may better support clean edges and maintain shape, particularly when used with a backing shell or support case. However, greater firmness can make a detailed candle more difficult to remove. The appropriate balance depends on the design, wax type and whether the mould will be used occasionally for short runs or repeatedly in a commercial setting.

For many projects, a mould system rather than a mould alone provides the answer. This might include a flexible silicone cavity supported by a rigid jacket, an alignment frame or a purpose-built outer case. The support keeps the cavity true while the silicone provides the flexibility required for release. It can also make handling safer and more repeatable when multiple operators are involved.

Validate the master before committing to production

The quality of a custom mould cannot exceed the quality of the master pattern. Whether it begins as a CAD file, a 3D print, a hand-finished model or an existing product sample, the master should be reviewed for surface quality, symmetry and dimensions before mould manufacture starts.

3D printed masters are useful for development, but layer lines and minor surface defects transfer into the mould and then into every candle. Depending on the intended finish, the master may need sanding, sealing, polishing or further machining. A polished master can produce a refined wax surface, while a deliberately textured master can reinforce a handcrafted or natural product identity. Both are valid choices, provided the finish is intentional and repeatable.

Prototype sampling is where assumptions are tested. Initial casts reveal how the wax flows, whether detail fills, where shrinkage appears and how easily the part releases. They also show whether the finished candle sits level, accepts a wick correctly and meets presentation standards after cooling. Testing should use the intended wax blend wherever possible, not a substitute selected only for convenience.

Measure what affects yield

A successful test is not just a visually acceptable candle. Record fill weight, cooling time, demoulding time, reject reasons and any finishing work needed after release. If the mould requires frequent cleaning, excessive trimming or careful handling by only one experienced operator, it may not be ready for scale.

This information helps determine whether the design needs refining before further tooling is made. It is usually more economical to adjust a master or mould concept during development than to accept avoidable waste across hundreds or thousands of castings.

Design for the production environment

A custom candle mould should fit the way the business actually works. A small specialist maker may value flexibility and low setup time, while a growing brand may need multi-cavity tooling to increase output without expanding labour at the same rate. Larger manufacturers may require compatibility with filling equipment, cooling racks, automated handling or established quality-control procedures.

Multi-cavity moulds can improve throughput, but they introduce trade-offs. They are heavier, require more wax per cycle and may be less convenient if product variants change frequently. Uniform filling and cooling also become more important. If one cavity consistently behaves differently from the others, the apparent production gain can be lost to inspection and rework.

Consider the full cycle, not only the pouring stage. Operators need a practical way to prepare wicks, fill cavities, move moulds, cool castings, demould products, inspect the finish and clean the tooling. Clear alignment features, stable support systems and manageable mould weights all reduce variation between batches.

Protect proprietary designs and control change

For branded candle collections, the shape itself may be a key commercial asset. Development drawings, CAD data, master patterns and finished tooling should be handled under appropriate confidentiality arrangements. This is especially relevant when a product is being prepared for launch or when a manufacturer is creating a recognisable form that competitors could imitate.

Change control matters after approval as well. Keep a clear record of the approved wax blend, wick method, colourants, pouring temperatures and casting instructions. Altering several variables at once makes it difficult to identify the source of a defect. When a new fragrance or wax supplier is introduced, run a controlled trial before changing standard production.

TCI Mouldings approaches bespoke tooling as a manufacturing partnership, with in-house design, prototyping and mould production supporting controlled development from concept through to repeatable output.

When to replace or replicate a candle mould

Even high-quality silicone tooling is consumable. Its usable life depends on geometry, handling, cleaning methods, wax formulation and the number of cycles completed. Signs of wear include torn edges, loss of fine detail, reduced dimensional accuracy, persistent marking or a noticeable decline in release performance.

Planned replication can prevent an established product line from being interrupted by tool failure. Once a design is validated, retaining the approved production information makes it easier to create matched replacement moulds or increase capacity as demand grows. For best continuity, assess the original mould's performance before it deteriorates beyond useful comparison.

The most productive next step is to prepare a concise development brief: the candle design, target dimensions, wax type, wick approach, expected volume, required finish and any known production constraints. A well-defined brief gives the mould designer the information needed to engineer for accuracy, durability and a reliable daily workflow.
